Winchester 94 1968 Bent carrier : or : Winchester breaks A John Browning design....

There are few things I hate more than a well designed gun, economized to the point the basic function of said firearm is jeopardized. From my readings there was a span in the mid-late 60's that Winchester not only changed the steel of their receivers to take some butt ugly looking bluing but they also used stamped carriers that more often than not BENT with little use of the gun. Luckily I was able to secure a machined carrier to replace in my '68 vintage 94 and we're back up and running. The 94 is such a simple design believe it or not and has a lot of features one may not realize existed, such as a built in firing pin safety in which when the lever is actuated it actually cams the firing pin back away from the breech face. John Browning designed it so you know its a solid design...well that and its over 110 years old now so for it to survive this long it had to be....  My particular gun is in 30-30 as most of these rifles were. Its a "beater" of sorts. The 40 year old firing pin also needs replaced so we are waiting on that part still....however looking at how simple the thing is and cost of replacements I may just make one really quick on the lathe with the use of a ball turning turret to ensure the correct taper is achieved.




A quick 15 minutes turned my 94 into a puzzle of parts.

Bent stamped carrier on top, machined carrier on bottom, NOTE bottom carrier is shorter, this made me think it was the wrong carrier but it is not!

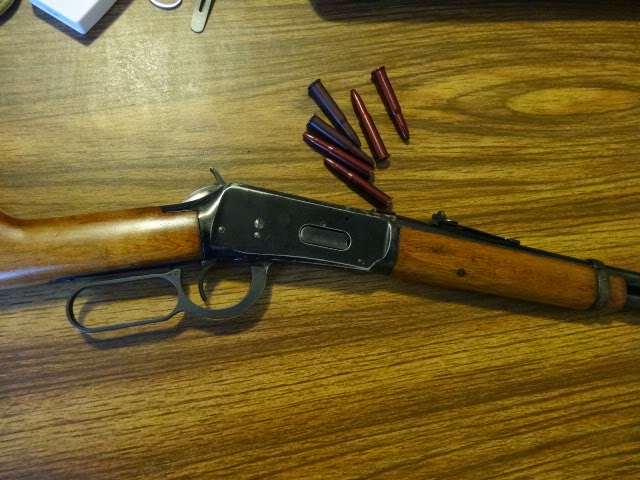

Function proven with the use of snap caps, range test next....after the firing pin is replaced of course.
